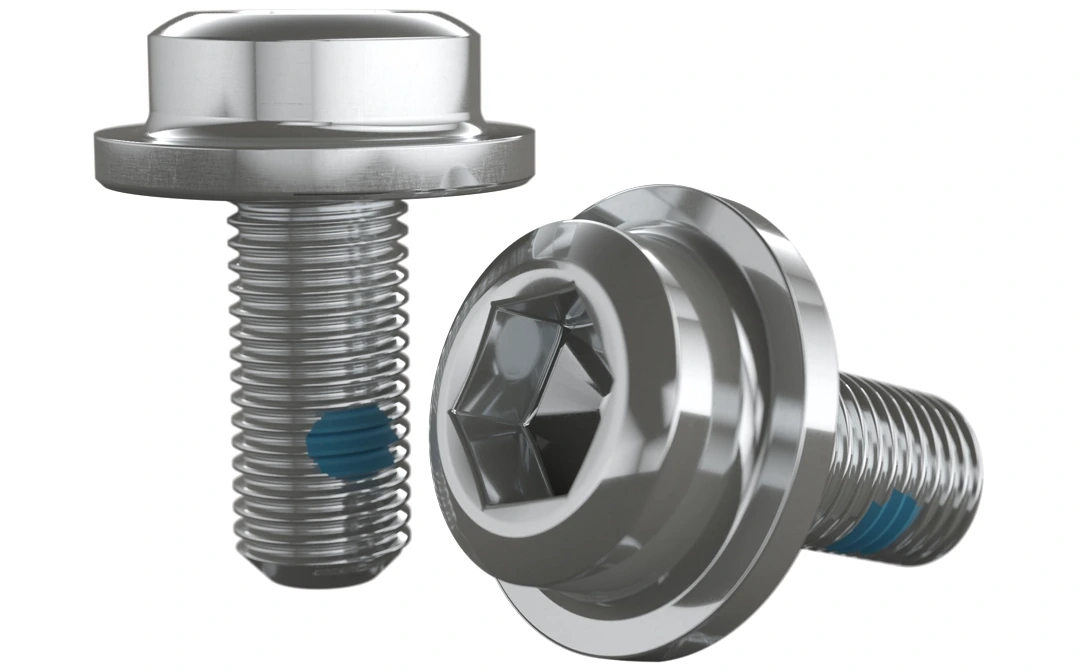

ROUND ALLEN Bolts (no thread-lock)
ROUND ALLEN bolts secure the crank arms to the shaft of the e-bike's mid-drive motor. They combine an M15x1 thread with a round-head exterior and an internal Allen interface, giving manufacturers a clearly defined bolt setup in either black or silver.
A composite cover ring is also available for all round-head bolts.
Technical Specifications
FAQ
ROUND ALLEN bolts secure the crank arms to the shaft of an e-bike's mid-drive motor, providing a reliable connection between the crank arms and the drive system.
ROUND ALLEN bolts use an M15x1 metric thread. The designation indicates a nominal thread diameter of 15 mm and a thread pitch of 1 mm.
ROUND ALLEN bolts have a round-head exterior and an internal Allen interface allowing them to be tightened with a suitable Allen key.
Both variants use the same thread size and bolt design. The Black version is blackened, while the other version is supplied in silver.
Yes, a composite cover ring is available for all round-head bolts.
Related products
Our B2B Process
We work step by step to clarify what fits before it reaches your assembly line.
1. Tell Us What You Need: Share your crank arm mounting requirements, motor shaft thread specifications and application profile. Our experts help you choose the right bolt variant, including the surface finish.
2. Check the Fit in Your System: We review the selected bolt at the connection between the crank arm and motor shaft, checking thread fit and tightening conditions so it integrates smoothly into your assembly process.
3. Produce with Confidence: You receive clear specifications for assembly and production. This keeps variability low and supports consistent results across your production runs.
